Fenix Eye

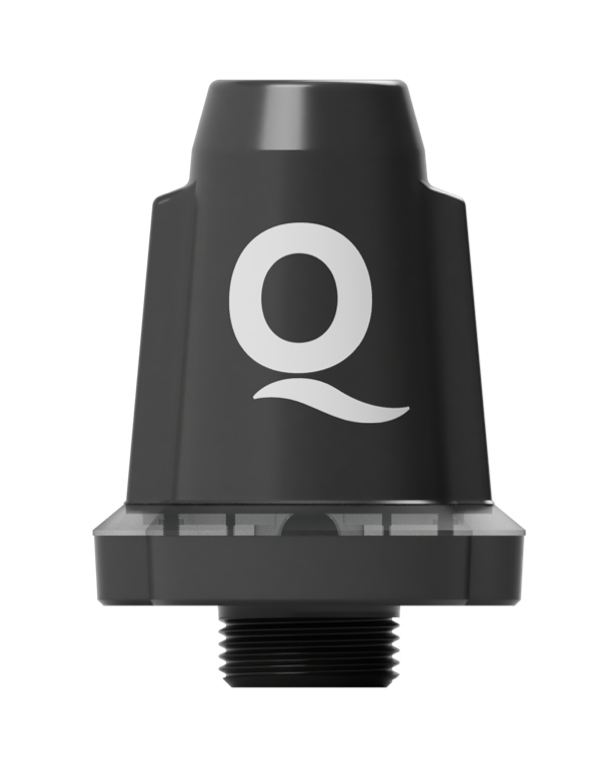

Fenix Eye is Aqua Robur’s latest radar level sensor, featuring market-leading battery life and designed for long-term, reliable level monitoring. It delivers secure, high-resolution measurement data in wastewater networks, stormwater networks, tanks, catchment areas, and recipients.

By combining high-precision radar, cellular connectivity, and remote configuration in a robust, compact form factor, Fenix Eye enables stable data collection even in exposed and difficult-to-access environments.

With our new installation application, users can ensure the installation is carried out correctly based on site-specific conditions. This provides optimal measurement conditions and enables long-term, reliable data collection.

Fenix Eye is designed to operate across a wide range of installation sites and in most environments. With a rugged enclosure, carefully selected materials, and a radar measurement methodology developed for stable operation, Fenix Eye delivers high precision and reliable measurements over the long term.

Up to 15 years of battery life

Minimal maintenance

Secure connectivity

Software & Electrical

Internal sensor log interval
Every 3 hours
Internal device memory
Approx 100.000 logged data points
Radio technology
NB-IoT and LTE CAT-M
Data transmission
Periodic / data-triggered / manual
Data transmission interval
Configurable, down to 5 min
Cellular roaming
Multi-region data plan
Configurations and upgrades
Remote encrypted over-the-air (FOTA and COTA)
Local configuration
BLE (Live Mode)
Data communication
Bidirectional
Data hosting
Cloud Azure
Cyber security
DTLS 1.2 protocol
Software integration
REST API, MQTT, CSV, SCADA
Device management
Aqua IoT Cloud or local BLE
Fleet management
Aqua IoT Cloud
Site management
Aqua IoT Cloud
Alert management
Aqua IoT Cloud
Alert endpoint
Email, SMS
Alert trigger
Device (immidiate) or Cloud

Mechanical

Power supply
Battery pack containing Lithium Thionyl Chloride (LTC), field-replaceable, non-rechargable
Battery voltage
3.6V
Battery capacity
17Ah
Battery life
Up to 15 years (depending on usage)
Radar log interval
Configurable, min 60 sec, smart adaptive mode
Radar accuracy
+/- 1% of measurement range
Radar range
150mm to 20m
Radar beam angle
< 8°
Antenna
External, SMA interface (3 m antenna included)
Dimensions (W x H x D)
75 x 80 x 113 mm
Weight
0.5 kg
Enclosure material
PBT, HDPE and TPE
Console material
Stainless steel, 316L
Thread connector
G1"
Ingress Protection
IP68 (3 m for 24h)
Operating temperature
-20 °C to +70 °C
EU
CE
Safety
IEC 62368-1
EMC
EMC Directive 2014/30/EU
Ingress protection (IP68)
IEC 60529
