Sensors

It the sensor portfolio, there is a selection of well-known sensor types, elements and manufacturers which are widely used in the utility sector to give you the most value and reliability.

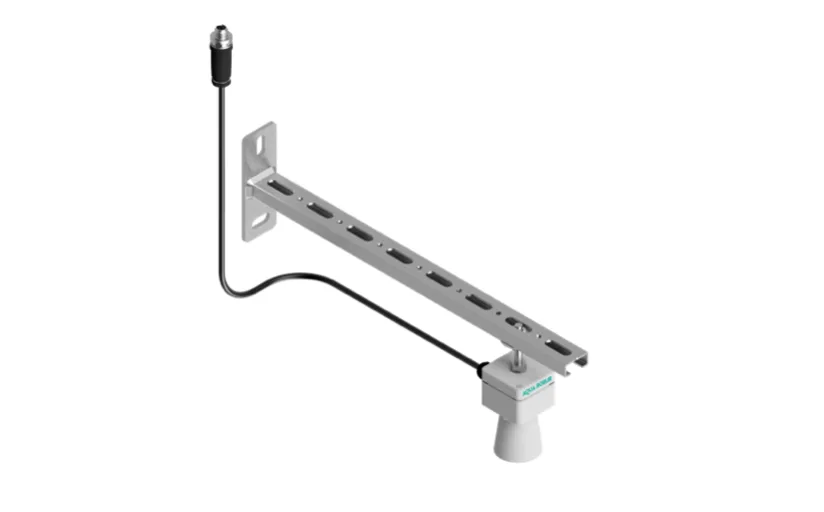

Level Sensor LS-7389

Features of the LS-7389, includes mm resolution, short to long distance detection, from 300mm to 5000mm to the target with the largest acoustic return. The LS-7389 is factory calibrated to match narrow sensor beam patterns and provide reliable long-range detection zones. The LS-7389 is designed to report the distance to the largest acoustic return while ignoring smaller targets. When targets are of similar amplitude reflections, preference is given to the closest target. This gives users the flexibility to detect larger targets in the presence of clutter and noise.

Electrical

Sensor technology

Ultrasonic

Sensor element

Maxbotix MB7389

Measuring range

300-5000mm

Sensor protocol

TTL UART

Sensor resolution

1 mm

Pinout

RED=Power supply

GREEN=GND

WHITE=SIG/Data line

Connector, electrical

Ferrule wire

Mechanical

Operating Temperature

-40°C to +65°C,internal temperature compensation

IP rating

IP67

Bracket material (included)

450 mm, electro zinc-plated, stainless steel as an option

High precision

> 99.5 % accuracy

Noise reduction

Advanced filter to increase veracity of readings

Ultra low-consumption

Extremely energy-efficient

Pressure Sensor Jumo Midas S05

The fully welded and therefore seal-free measuring system made of high-grade stainless steel allows this device to be used in almost all media, even when the conditions are rough. The structure ensures optimum protection against process medium leakage. The applied silicon sensor can handle extreme overloading even in the lowest measuring ranges and is capable of handling millions of pressure cycles.

Electrical

Sensor technology

Silicon sensor with separating diaphragm out of stainless steel

Sensor element

Jumo Midas S05

Measuring range

0-16 bar

Sensor protocol

4-20mA

Accuracy

0,5% at 20°C % MSP

Connector, electrical

Cable socket

Mechanical

Operating Temperature

-10o C to +40o C

Connector, membrane

1/2”, threaded

IP rating

IP67

XX

Resolution

Seal-free

Range

Overload protection

Accuracy

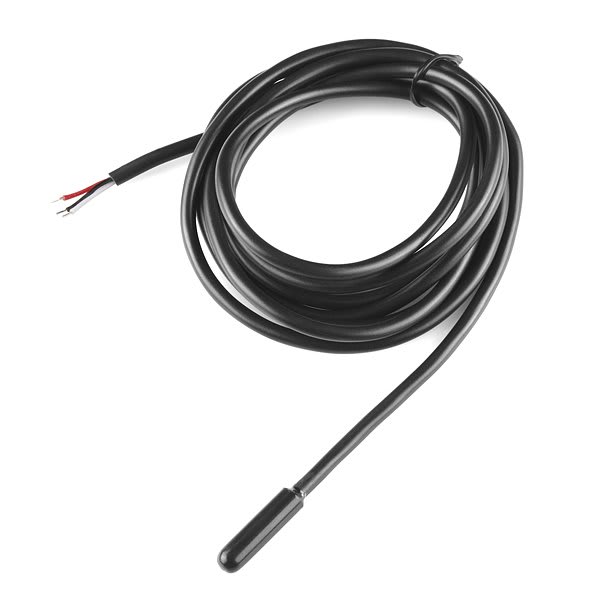

Temperature probe DS18B20

The DS18B20 sealed and submersible digital temperature probe lets you precisely measure temperatures in wet environments with a simple 1-Wire interface.

Electrical

Element type

IC

Measuring range

-55°C to+125°C temperature range

Sensor protocol

1-wire, DS18B20

Accuracy

±0.5°C accuracy from -10°C to +85°C

Resolution

0,0625°C

Pinout

RED=Power supply

BLACK=GND

WHITE=SIG/Data line

Connector, electrical

Cable socket

Mechanical

Operating Temperature

-10o C to +40o C

Connector, membrane

1/2”, threaded

IP rating

IP68

IP68

IP rating

Seal-free

High accuracy

Reading error < 0,0625°C
